Type:
Bug Report
-
Resolution: Fixed
-
Priority:
L3 - Default
-
Affects Version/s: None
-
Component/s: None
-
None

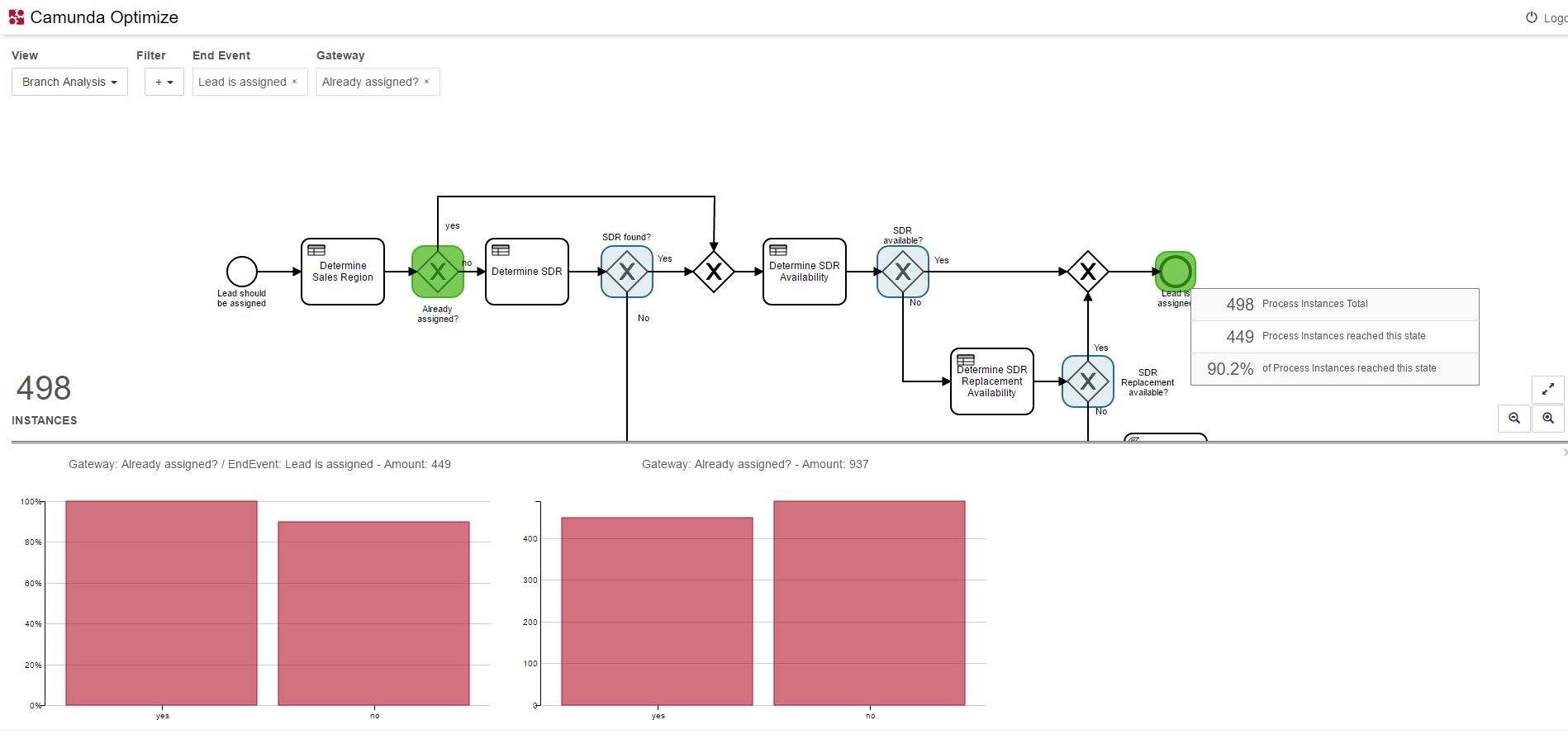

See attached screenshot.
I have tested against the latest version of the Assign Lead process in the optimze stage setup.
Reproduce:
498 instances have been started.
Perform a branch analysis between End Event 'Lead is assigned' and Gateway 'Already assigned?'
Problem:
Gateway amount is 937
Expected:
Gateway amount is 489
Problem:
- given:

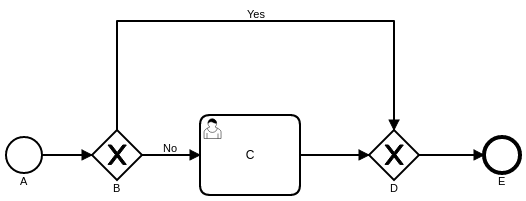

- the attached process
- two process instances, where one takes the yes and one the no path
- the attached process
- when:
- I perform a branch analysis on gateway B and the endEvent E
- then:
- a wrong branch analysis is performed
