Changing an existing diagram reorders the "documentation" element

    XMLWordPrintable

Details

    Description

      Using the camunda modeler 2.0.12 I opened a existing bpmn diagram change the label of a gateway and save.

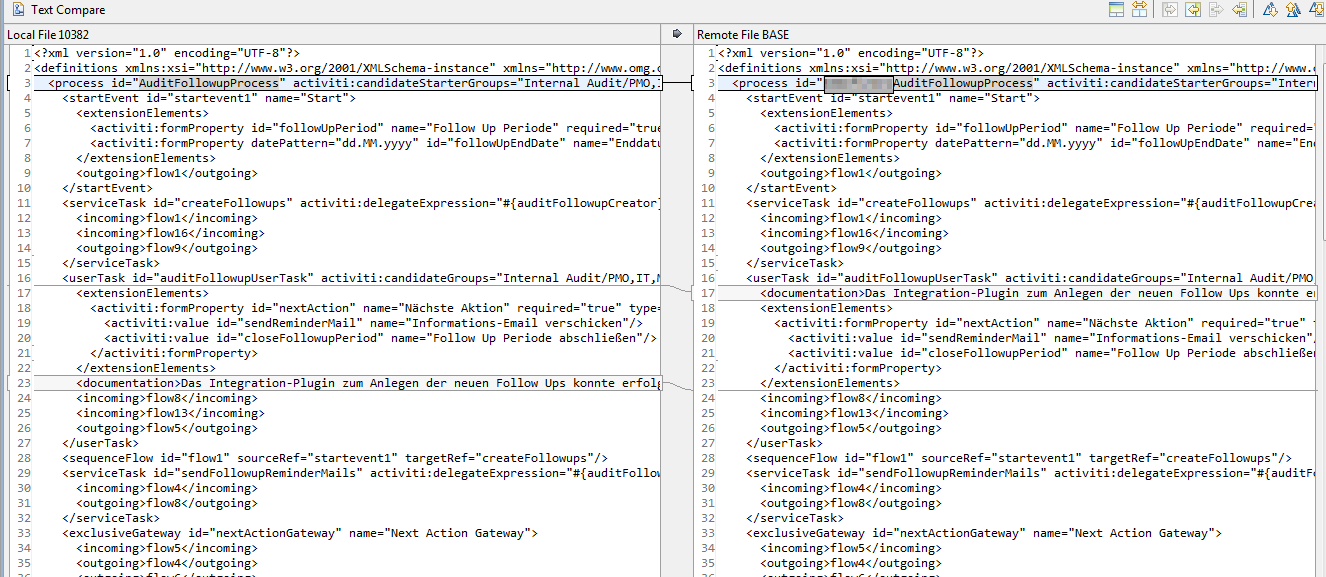

      As you can see in "camunda_modeler_documentation_element.png" the "documentation" element was moved after the "extensionElements".

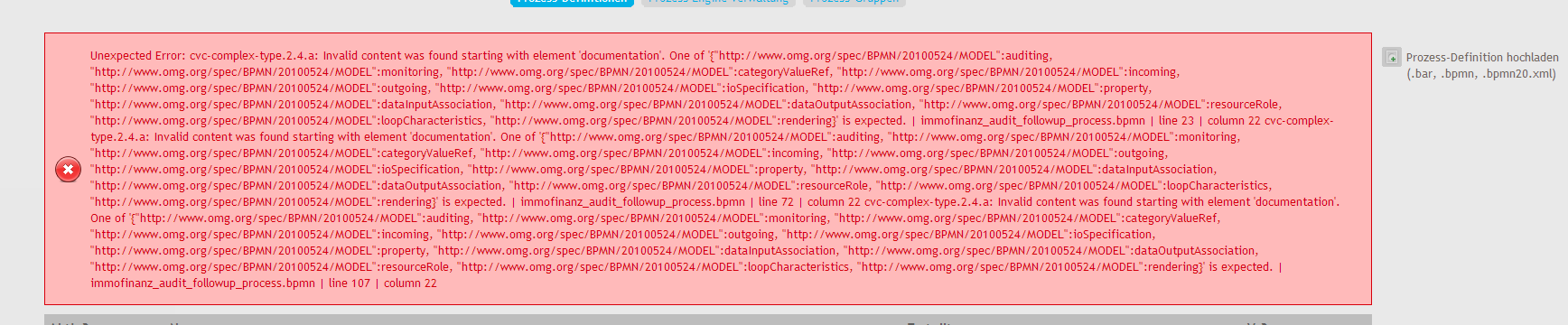

      The problem is, according to the schema the "documentation" element must occur before and therefore such bpmn file can't be deployed to the process engine (camunda bpm 7.0.0-alpha5). see documentation_element_deploy_error.png

      Right now the only workaround is to manually move the "documentation" element to its correct position.
